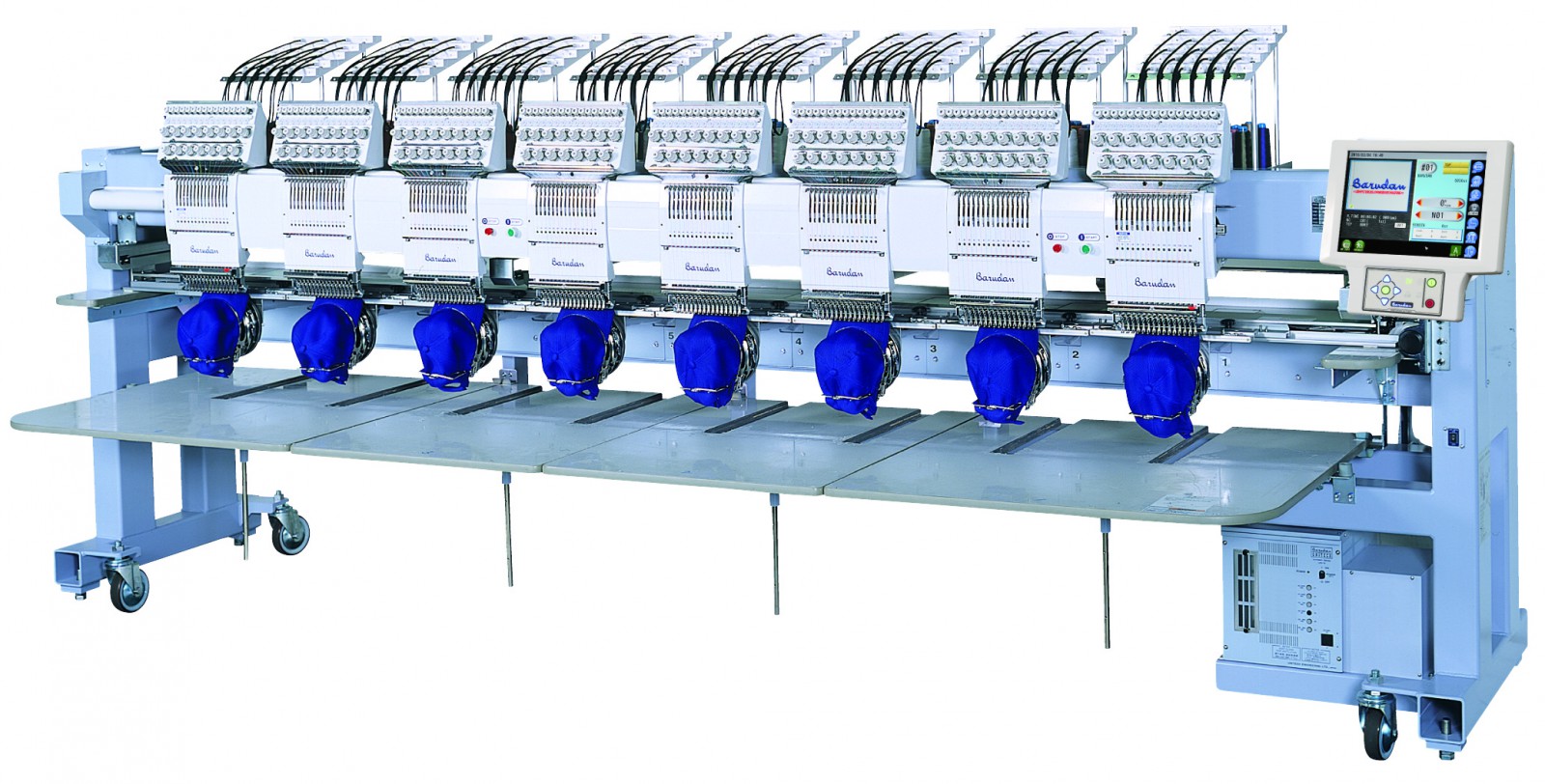

2-8 Head Machines

Barudan's newest 2 through 8 head machines now have:

  • New SmartHead technology SH Sewing Head
  • Servo Motors for Increased Production

See details in  K Series Multihead Sales Brochure

The bridge type head configuration allows for a large 450 mm x 520 mm sewing field (approximately 17¾ x 20½ inches) whether choosing a 2-head, 4-head, 6-head or 8-head model, you will see increased production with exceptional quality. Effortlessly change from sewing flats to caps with no tools with the Barudan Advantage EX Cap Frame system. Powerful Servo motors and positive needle drive technology allow you to expertly sew on a variety of garments from fine silk to heavy leather.

  • 15 Needles
  • 450X520mm sewing field (approximately 17¾ x 20½ inches)
  • 1,100 stitches per minute on flats, 1000 spm on caps
  • K-Series Automat NOTE: 450X380mm sewing field on our 6-head 380 and 8-head 380 machines.

Features and Specifications are subject to change at any time, without prior notice. Information on these pages is provided without guarantee.

Machine Purchase Includes:
  • Advantage EX Cap Frame System: Includes quick-install drive unit, framing device, and two cap frames per sewing head
  • Tool Box with basic tools, supplies and lubricants
  • Detailed Parts Book (on CD) with drawings showing user-replaceable parts in your machine
  • Machine Manual Operations and Quick Reference Guide (on CD)
  • USB memory stick for transferring embroidery designs to your machine
  • LAN Port Standard - Available for Barudan LEM networking software
  • COM Port Standard - Available for direct connections and Barudan's Design File Server networking software
  • ETL Listed - Safety tested to UL standard 1594

Standard frames (two per sewing head):

  • 12cm (approximately 4½ inches) Blue Round Frames
  • 15cm (approximately 5¾ inches) Blue Round Frames
  • 18cm (approximately 7 inches) Blue Round Frames
  • 300x290mm Oblong Frames (approximately 11¾ x 11 inches)
  • *330x438mm Oblong Frames (approximately 12¾ x 17 inches)
    *Not available on 380 machines

Additional frames available:

  • 9cm (approximately 3½ inches) Blue Round Frames
  • *460x434mm Oblong Frames (approximately 18 x 17 inches)
    *Not available on 380 machines

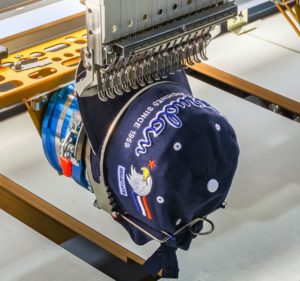

EX Advantage Cap System
